KF Trunnion Mounted Ball Valves
Series Fae
Series Fae | 2-Piece Design
2-Piece Carbon Stell, Low Temp Carbon Steel
2″FP-12″FP Ansi Class 1 50 & 300
Series T Top Entry (Inline Repairable)
Top Entry One-Piece Carbon Steel or Low Temp Carbon Steel
2″FP-1 2″FP, ANSI Class 600
2 1/16 “FP-7 1/16 “FP, API 200
Double Black & Bleed
Blowout Proof Stem Design
Corrosion Resistant Low Friction Bearings
Inconel Wave Springs Assist in Low Pressure Sealing
Fire Safe Designed
Stainless Steel Injection Fittings for Emergency Stem or Seat Sealant & Lubrication Maintenance
Antistatic Grounding Between Ball, Stem & Body
NACE MR0175/ISO 15156
8" & Larger Valves are Equipped with Lifting Lugs*
Bi-DIrectional
Double Piston and Self-Relieving Designs Available
API 6D

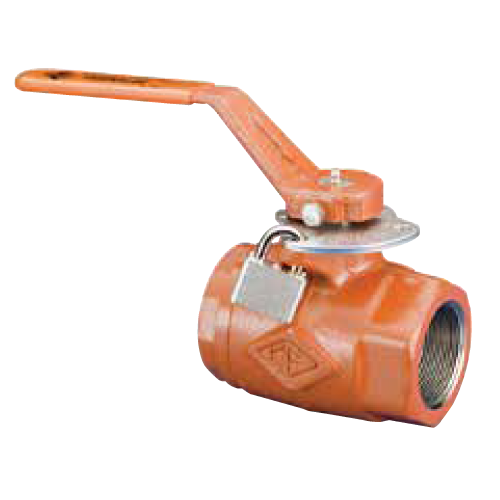

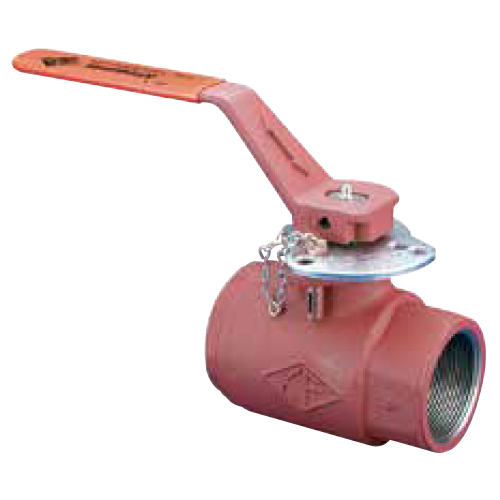

KF Threaded & Grooved-End Floating Ball Valves
Series E, EH & EC
Series E-Ductile Iron Body, 2″RP-4″RP, 750 CWP
Series EH-Ductile Iron Body, 2″RP-4″RP, 1000 CWP
Serices C, CH & CXH
Carbon Steel Body
Series C-1″FP-4″FP, 1000-2500 psi
Series CH-1″FP-4″FP, 2000-3000 psi
Series CXH-1″FP-2″RP, 5000 psi
Serices CA & CAH
Carbon Steel Body
2-3/8″EUE X 2 1/16 “Bore & 2 7/8″EUE X 2 9/16 “Bore
Series CA-1000-2000 psi
Series CAH-3000 psi
features
Full & Reduced Port
Threaded & Grooved End Connections
External Grease Fitting
Weather Seal (Steam)
Fire Safe Designed
Blowout Proof Stem Design
Heavy Duty Flatted Stem Design
Metal-To-Metal Fire Safe Sealing
Integral Locking Device
Manual Operation Handle
Optional features
Antistatic Device
Valves Specified with Stainless Steel Trim Meet NACE MR0175/ISO 15156
KF Commodity Ball Valves
Series E-Ductile Iron Body, 2"RP-4"RP, 750 CWP Series EH-Ductile
HC-730-Carbon Steel Unibody, 1/2″-2″, 1500-2000 CWP
HC-740-Carbon Steel 2-Piece, 1/4″-2″, 1500-2000 CWP
HC-710/HS-810-Carbon & Stainless Steel Unibody, 1/4″-2″, 2000 CWP
HS-820-Stainless Steel Seal Welded
2-Piece, 1/4″-2″, 2000 CWP
HB-600-Bronze 2-Piece
1/4″-4″, 400-600 CWP
features
2-Piece & Unibody, Cast, Investment Cast & Bar Stock Body
Design For Hydraulic Hook-Ups, Offshore Applications, Well Heads, Production Lines, Petroleum & Chemical Plant Applications
Reinforced PTFE Seats
Blowout Proof Stem
Optional Locking Device
Fire Safe Designed
KF Threaded End Floating Ball Valves
Series B & BH | 3-Piece Design
Carbon, Stainless Steel Body
Series B-1/4″FP-2″RP, 2250-3000 psi
Series BH-1/4″FP-1″FP, 5000 psi
Series W
Carbon, Stainless Steel Body
1/4″FP-2″RP, 1500-2000 CWP
features
Full & Reduced Port Threaded, Socket Weld
Packed Style Stem
Blowout Proof Stem Design
Heavy Duty Flatted Stem Design
Metal-To-Metal Fire Safe Sealing
Manual Operation Handle
optional features
Antistatic Device
Valves Specified with Stainless Steel Trim Meet NACE MR0175/ ISO 15156
KF Flanged End Floating Ball Valves
Series FE
Carbon Steel, Low Temp Carbon Steel, and Stainless Steel
1″FP-8″RP, ANSI Class 150, 300, 600, 900 & 1500
features
NACE MR0175/ ISO 15156 (SS Ball/Stem Configuration)
Weather Seal (Class 600 & Higher)
Actuator Mounting Pad
Fire Safe Designed
API 6D Monogrammed
Secondary Metal-to-Metal Sealing
Full Rated Bi-Directional Dead End Service
Antistatic Device (Class 150 & 300)
Lockable Handle
