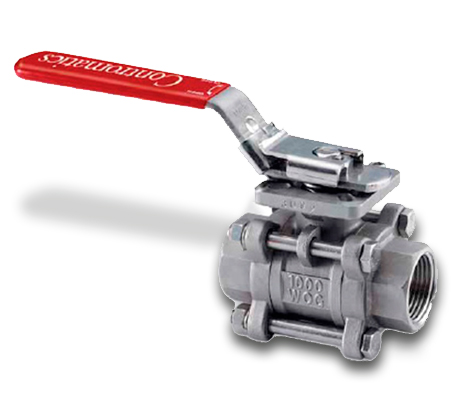

SERIES 7700-M3 & SERIES 8700-M3 –

Contromatics Three-Piece Ball Valve

Contromatics offers high quality at an economical price with it's M3 model of the series 7700/8700 three-piece ball valves. All standardly supplied with 316 stainless steel trim and Uniseal™, (modified virgin PTFE), seat, making these valves suitable for a wide variety of applications with pressures up to 1000 psi and temperature ranges from -20°F to 450°F. The 7700/8700 series valve is supplied with drilled ISO 5211 mounting pad and square stem, allowing direct mounting of pneumatic actuators.

The total of these features and options makes the 7700/8700 M3 model a cost effective alternative to other valves on the market today.


Features & Benefits

  • Three-Piece Construction for Ease of Maintenance
  • Full Port for Maximum Flow
  • Bottom Loaded Blow-Out Proof Stem
  • Live Loaded PTFE Stem Packing
  • ISO 5211 Facilitates Direct Actuator Mounting
  • NPTF Ends to ANSI B1.20.3
  • Socket Weld Ends to ANSI B16.11
  • Positive Grounding
  • NACE MR0175 / ISO 15156
  • CE 11/4" and Larger
  • CRN# OC 7841.50126789
